Stainless Steel Profiles
Stainless Steel Structural Tube
Structural profiles · Tubes

Stainless Steel Structural Tube, Project-Ready

Square, rectangular and round structural tubing from top Chinese mills, batch-matched and verifiable by OES testing, with tight geometry and finishes that match your drawings.
Shapes
Square, rectangular, round
Wall
0.5–8.0 mm
Grades
201, 304/L, 316/L, 321, 310S
Standards
ASTM A554, GB/T 12770, JIS G3446
Get a quote / send drawingsChoose a profile
SANMEI METAL  STRUCTURAL TUBE
stainless steel structural tubes
Square, rectangular and round tubes, cut to length on request.

Choose your structural tube.

Each profile with its essentials. Open the spec sheet for the full size table, or ask for the size you need.

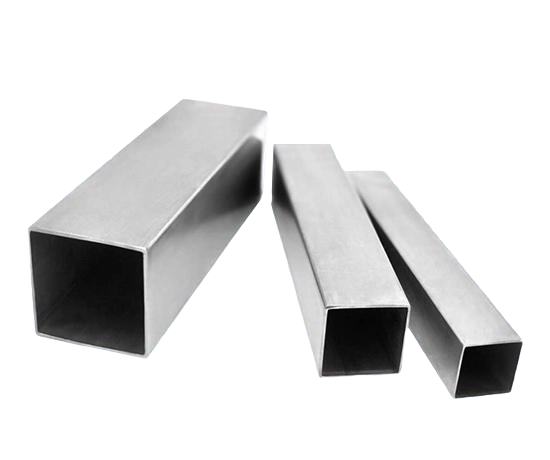

Square tubes

Decorative and structural framing with precise dimensional control and consistent weld quality.
Size
10×10 to 300×300 mm
Wall
0.8–8.0 mm
Standards
ASTM A554 · GB/T 12770 · JIS G3446
Grades
201 · 304/304L · 316/316L · 321 · 310S
Finishes
HL, No.4, 2B, mirror

Rectangular tubes

Architectural and engineering applications that need both strength and a clean appearance.
Size
10×20 to 250×300 mm
Wall
0.8–8.0 mm
Standards
ASTM A554 · GB/T 12770 · JIS G3446
Grades
201 · 304/304L · 316/316L · 321 · 310S
Finishes
HL, No.4, 2B, mirror

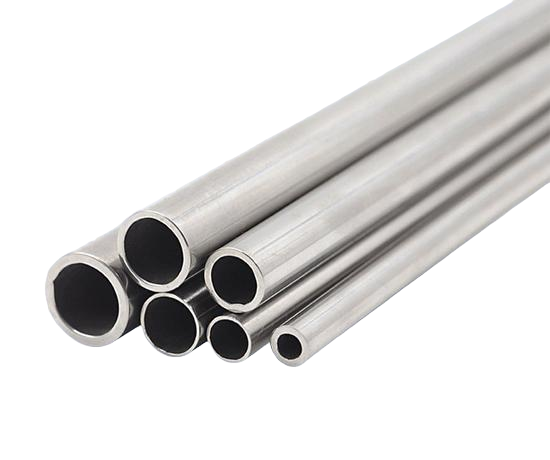

Round tubes

Mechanical and sanitary use, with smooth internal surfaces and corrosion resistance.
Size
Ø6 to Ø508 mm
Wall
0.5–8.0 mm
Standards
ASTM A554 · GB/T 12770 · JIS G3446 · JG/T 3030 · YB/T 5363
Grades
201 · 304/304L · 316/316L · 321 · 310S
Finishes
Pickled, annealed, sanitary options
Built to drawing

Tubes made to your tolerances.

Custom wall thickness, special geometry and cut lengths, held to your tolerances. Share drawings and target properties; we propose a workable section and run it to spec.
Non-standard wall thickness
Special geometry and cut lengths
Matched finishes across square, rectangular and round
Project fabrication support →Send your drawing
welding stainless steel

Structural tube FAQ.

Questions buyers ask before ordering.

Can you match finishes across different profiles?

Yes. We align polish direction and abrasive sequence so square, rectangular and round tubes read as one system.

Do you support non-standard wall thickness?

Yes, it is core to our offer. Share drawings and target properties; we propose a workable section and run it to spec.

What documents are included?

MTCs for material traceability, dimensional inspection sheets and, on request, Ra values for sanitary polish and passivation certificates.

Which standards do the tubes meet?

ASTM A554, GB/T 12770 and JIS G3446; round tubes also JG/T 3030 and YB/T 5363.

Why project buyers work with Sanmei Metal

Material-driven, engineering-supported, execution-ready. One supplier from the mill to your site.

An integrated fabrication network in Foshan.

Material, surface processing and fabrication lines within reach of each other, coordinated as one order.
stainless steel sheet mirror brushing
Material line
stainless steel coil
Material line
stainless steel coil
Material line
hairline finishing process on stainless steel
Surface processing line
mirror polishing process on stainless steel sheet
Surface processing line
PVD coating process on stainless steel sheet
Surface processing line
steel structure fabricating
Fabrication line
steel structure fabrication hub
Fabrication line
steel structure fabrication hub
Fabrication line

Coating that lasts longer, matches and stays clean.

Three things we measure on our own production, each compared with typical market product.
PVD coating

Thicker PVD coating

0.30µm
Typical market coil: 0.21–0.27 µm. Ours is up to 28% thicker.
In plain terms: the coating takes longer to wear through, so the color lasts longer.
See the coating test
Color control

Consistent color

ΔE ≤ 2
Most suppliers give no color tolerance at all. Every coil of ours is held at ΔE 2 or less.
In plain terms: reorder next year or mix batches on one wall, and the panels still match.
See the color data
Anti-fingerprint

Fingerprint-resistant

215solvent rubs
The standard asks for 100 solvent rubs. Typical market anti-fingerprint coating failed at 70; ours lasted 215.
In plain terms: fingerprints wipe off, and the coating holds up to daily cleaning.
See the AF test
Tested to GB/T and ISO standards, with MTR and SGS reports on request.
See all our quality control.

Documents you can check.

Every order ships with a Mill Test Report traced to its heat number, and SGS testing is available on request. These are real documents from our mill partners and our project work.
Certifications shown belong to Sanmei and its fabrication partners. Click a document to see it full size.

Tell us about your project.

Send a drawing, a reference photo or just the grade and size. Our team replies with material advice, finish options, samples and a quote.
What helps us answer fastest
Drawing, sketch or reference photo
Grade and thickness, if you know them
Finish or color you have in mind
Quantity and delivery location
Tell us about your project →
Samples and small batches are welcome.
