Decorative sheet · Embossed

Quilted Stainless Steel Sheet | 6 Diamond Patterns

A diamond embossed sheet: a raised, rhombus-grid textured surface pressed into the metal that diffuses light, hides fingerprints and fine scratches, and stiffens the panel.
Finish
2B / BA / No.4 + PVD + quilted emboss
Grades
201, 304, 304L, 316, 316L, 430
Thickness
0.3–3.0 mm (30–11 gauge) or custom
Color
Original or PVD, custom
MOQ
Flexible, per project
Lead time
7–10 days in stock, 25–30 days custom
Request for samplesSee the patterns
Icon

Color Book

1 file(s) 2.40 MB
Download
Decorative metal sheet

What is quilted stainless steel?

Quilted stainless steel, also called diamond quilted or diamond pattern stainless, is one of the embossed, textured stainless steel finishes. A regular grid of raised diamonds (rhombuses) is embossed into the sheet face, giving a padded, "quilted" look similar to tufted upholstery.
"Quilted" is the umbrella term and "diamond quilted" names the diamond motif. In stainless steel the cells are almost always diamonds, so the two terms are used interchangeably.
Like all embossed and textured stainless steel, the relief breaks up reflections to cut glare, hides fingerprints and everyday wear, and adds rigidity to the panel.
quilted stainless steel backsplash panels behind a kitchen counter

Four diamond patterns.

Quilted is not a single look. The diamond pattern comes in two shapes and two line profiles, so you can match the texture to the panel and the project.
quilted diamond embossed stainless steel sheets in four cell patterns

Shape

Square diamond: an even, symmetrical rhombus grid, the classic quilted look.
Elongated diamond: taller, stretched diamonds for a bolder, directional texture.

Line profile

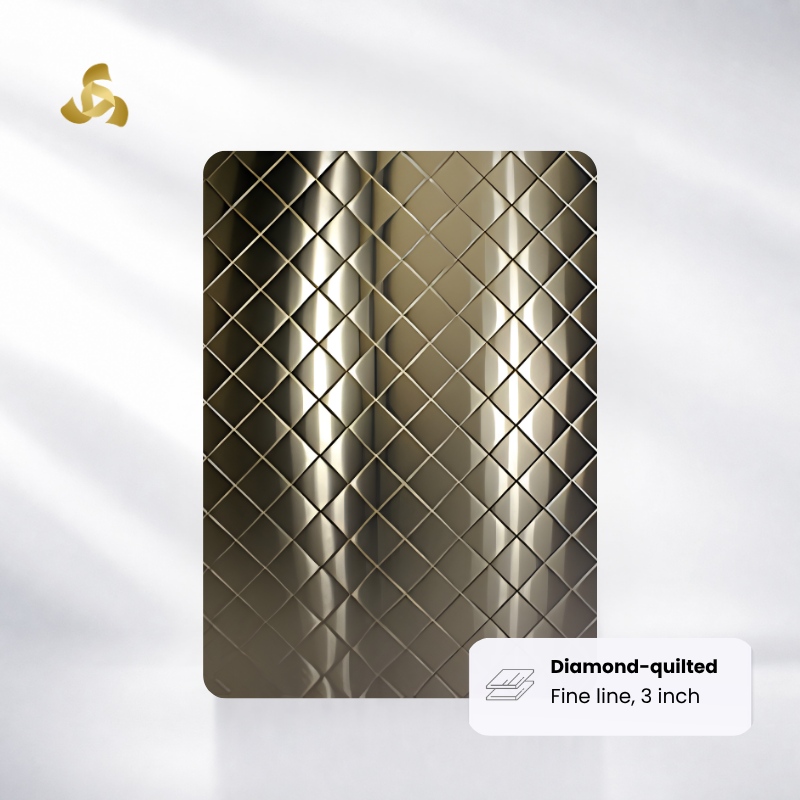

Fine line: crisp, shallow diamond outlines for a subtle, refined surface.

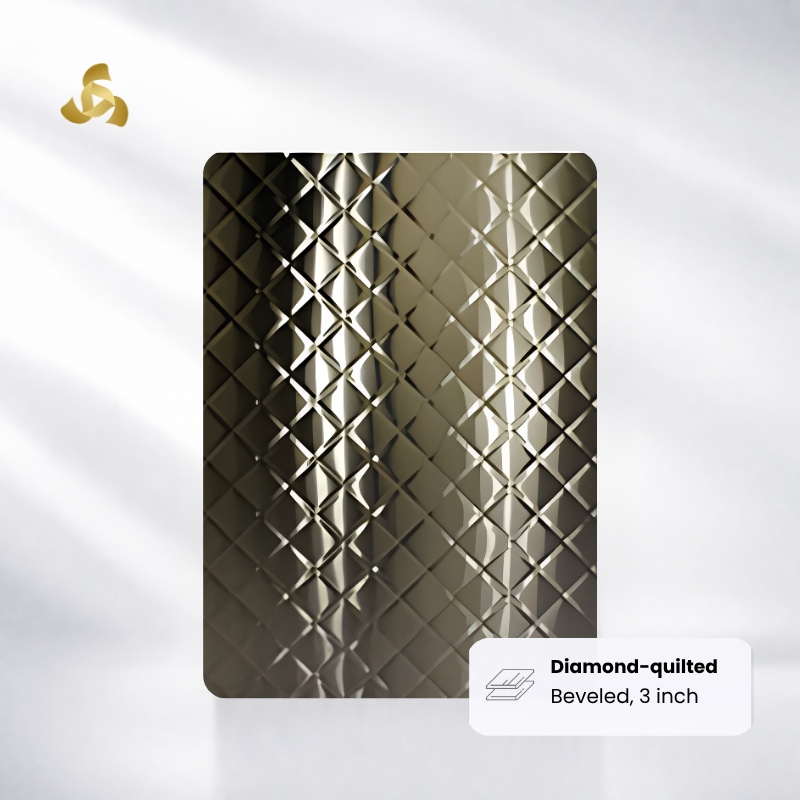

Beveled: deeper, chamfered diamond edges with stronger light and shadow.
Each shape is available in either line profile.
Order your sheets

Cell sizes.

Square diamonds come in three cell sizes. Elongated diamonds come in one fixed size.

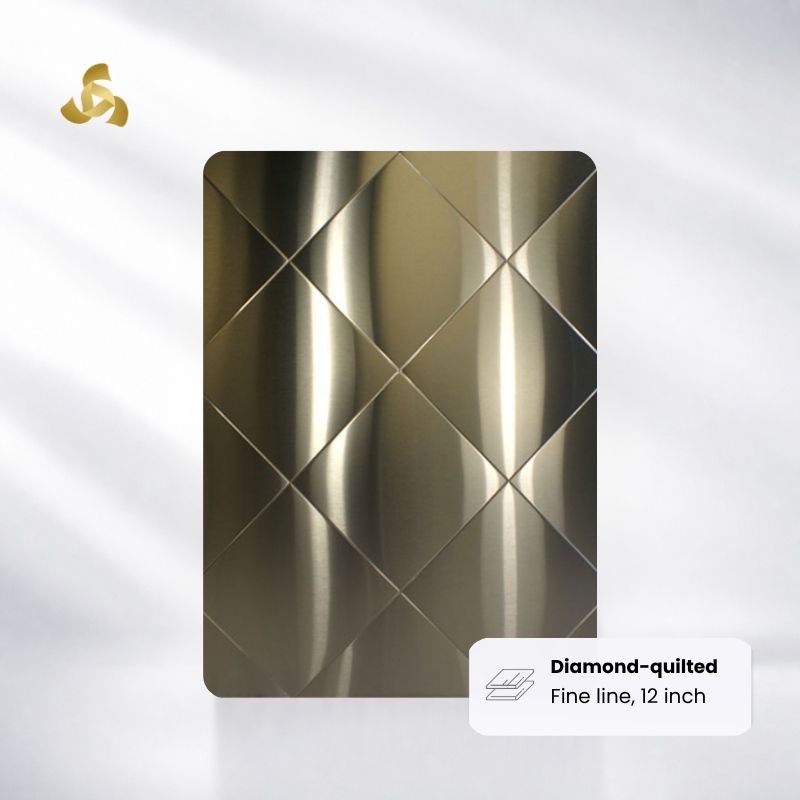

Square diamond

Small 3″ (76 mm), standard 6″ (152 mm) and large 12″ (305 mm).

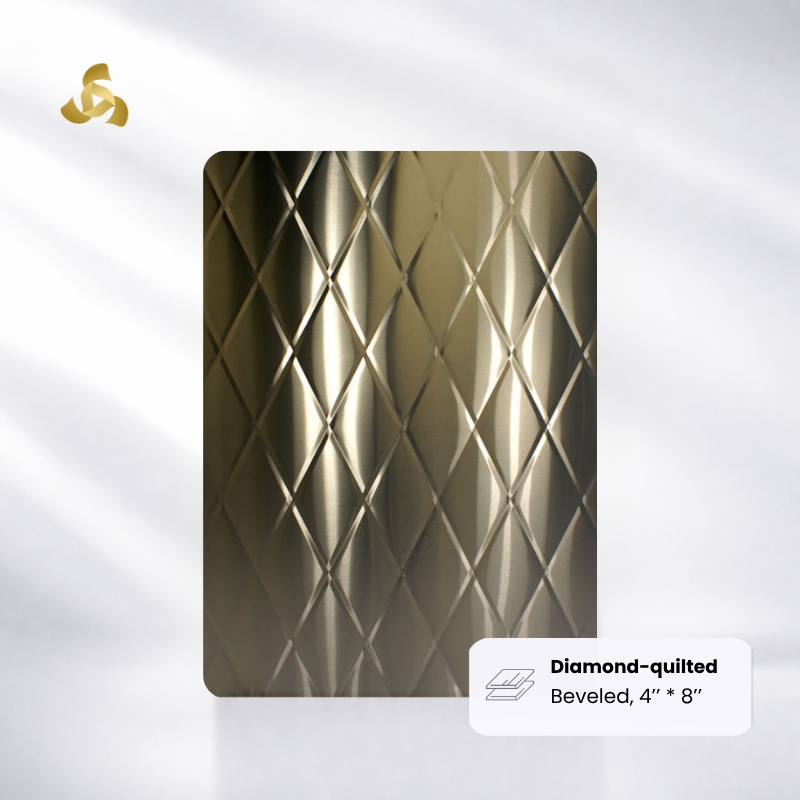

Elongated diamond

Fixed at 4″ × 8″ (102 × 203 mm), for a stretched, directional look.

Line profile

Every cell size comes in either line profile, fine line or beveled.

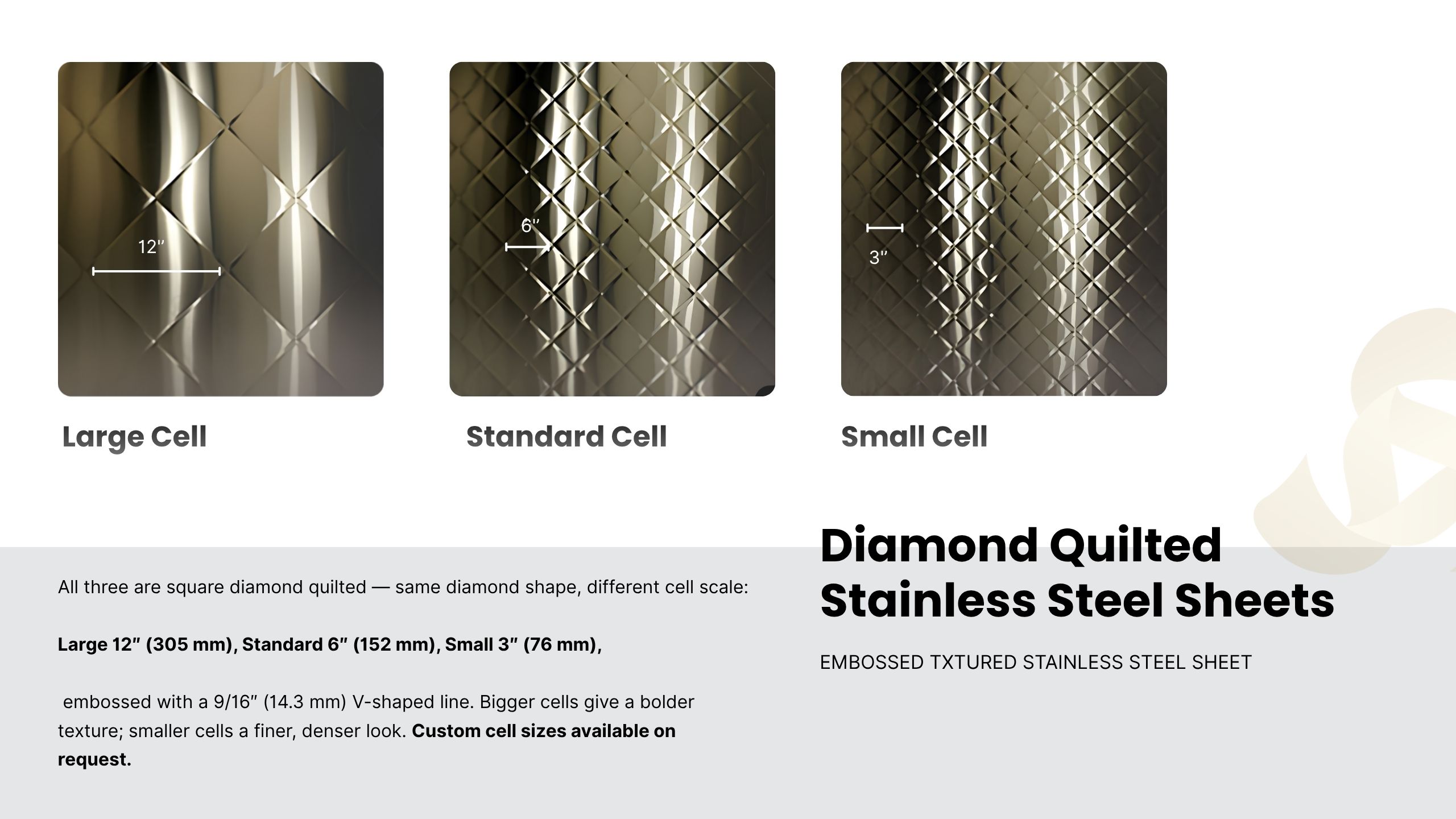

square diamond quilted stainless steel cell size comparison, large 12 inch, standard 6 inch and small 3 inch

Colors and finishes.

Every quilted sheet can take PVD color coating over the embossed texture: texture and color on one panel, durable and corrosion-resistant. This goes beyond the plain mirror or brushed quilted sheet most suppliers stop at.
Base finishes
2B, BA, No.4
PVD colors
Original, gold, rose gold, champagne, bronze, black, blue, or your own color
Need a color not shown, or a sample first?
Ask for a custom colorExplore the catalog

Applications.

Quilted (diamond embossed) stainless steel suits high-traffic, easy-clean surfaces where appearance and durability both matter.

Kitchen backsplash and wall cladding

Hygienic, wipe-clean, glare-reducing textured panels for commercial kitchens.

Wall panels and elevator interiors

Decorative embossed surfaces for lobbies, columns and cabins.

Food trucks and restaurants

Durable patterned panels for fabricators and foodservice OEMs.

Transportation and trailers

The diamond texture diffuses glare, and 304 resists road salt and weather.

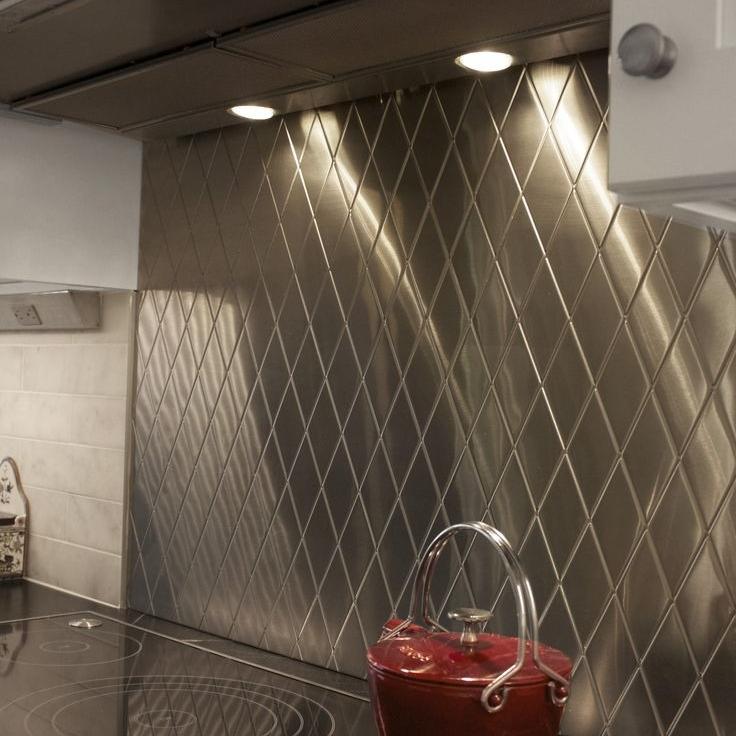

beveled-diamond-quilted-stainless-steel-backsplash-kitchen

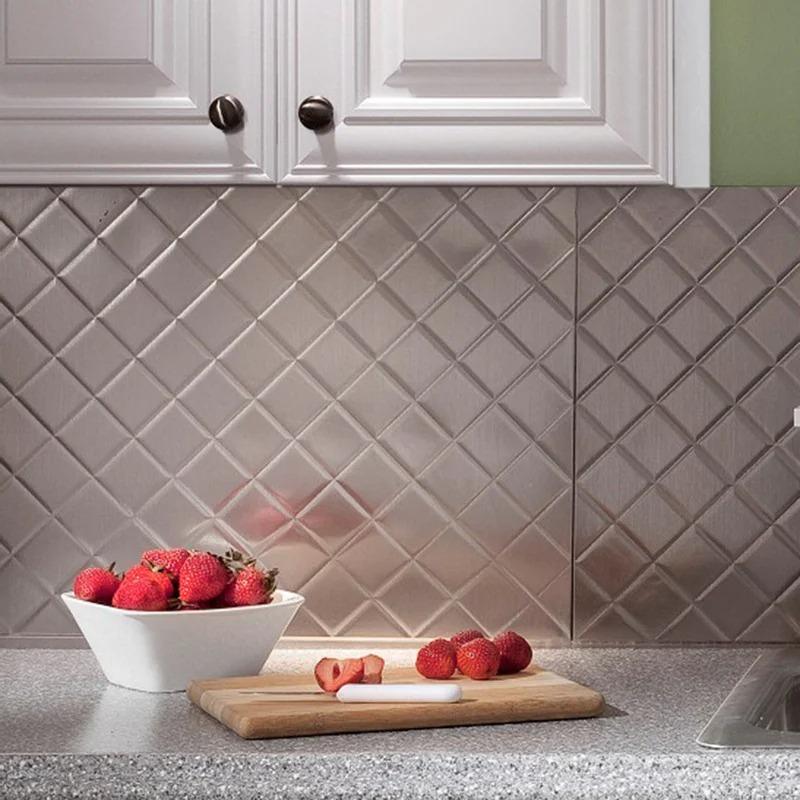

brushed-nickel-quilted-stainless-steel-backsplash-panel (2)

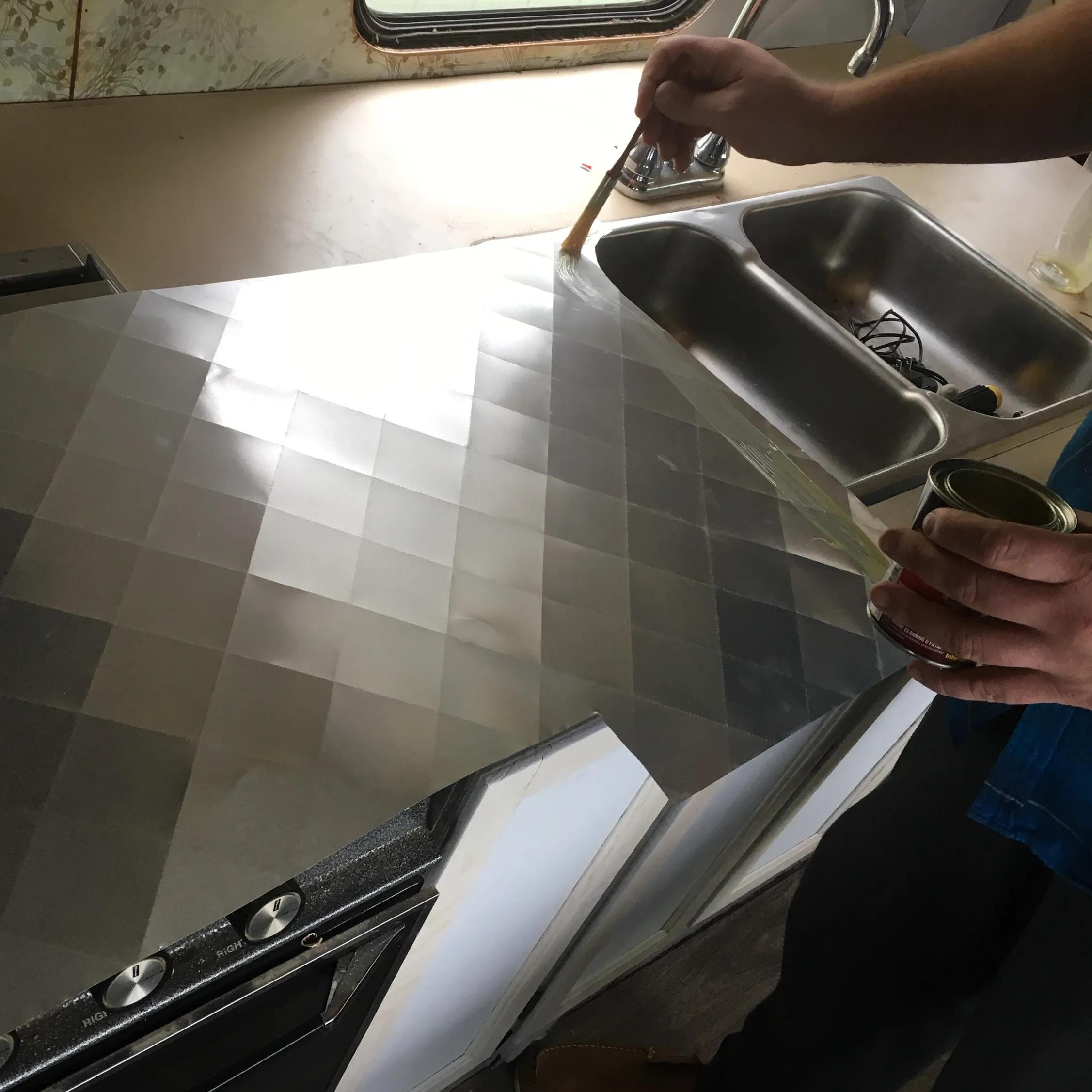

installing-quilted-stainless-steel-backsplash-panel.

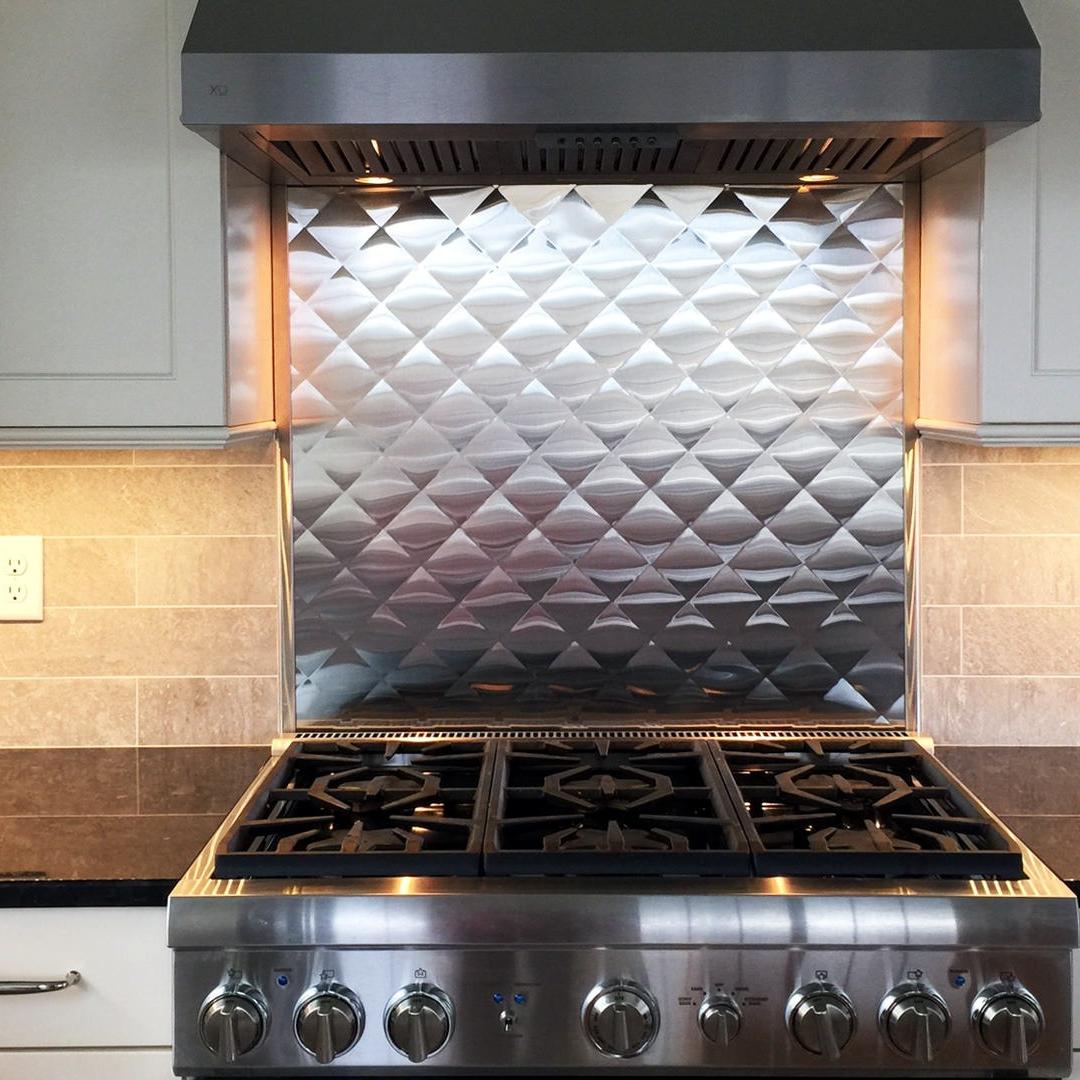

large-diamond-quilted-stainless-steel-backsplash-under-range-hood

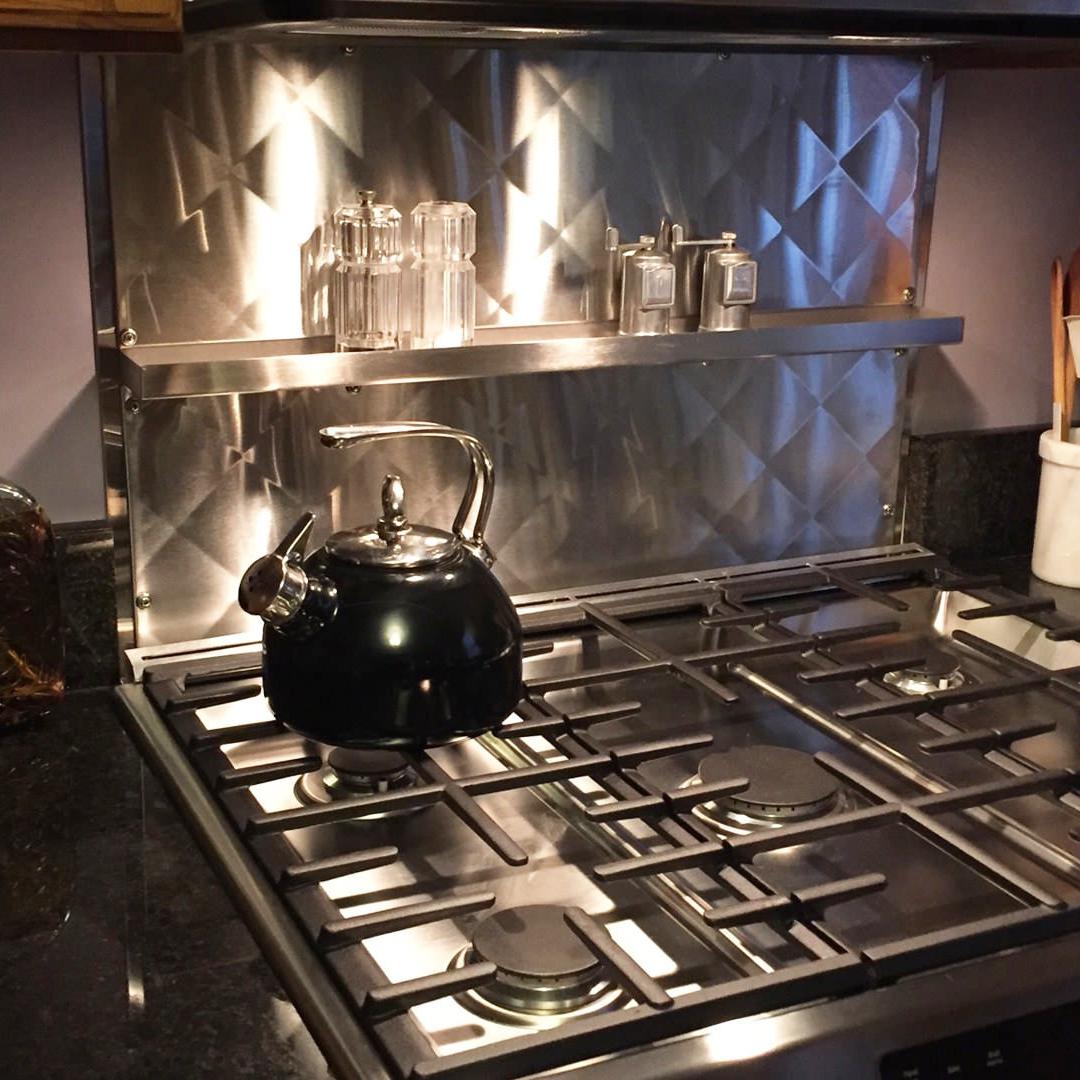

Quilted stainless steel kitchen backsplash panel with integrated shelf

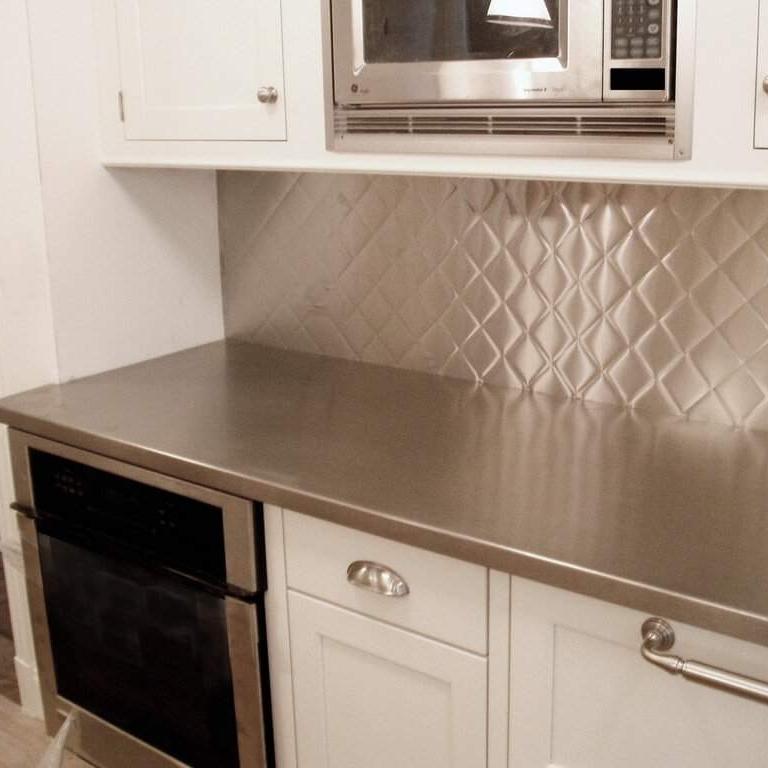

quilted-stainless-steel-backsplash-and-countertop-kitchen

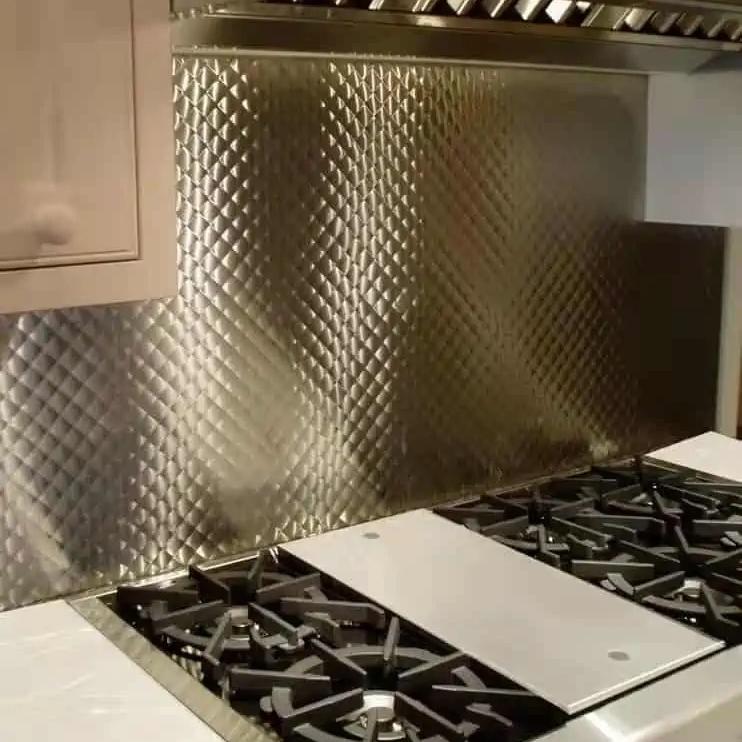

quilted-stainless-steel-backsplash-behind-gas-range

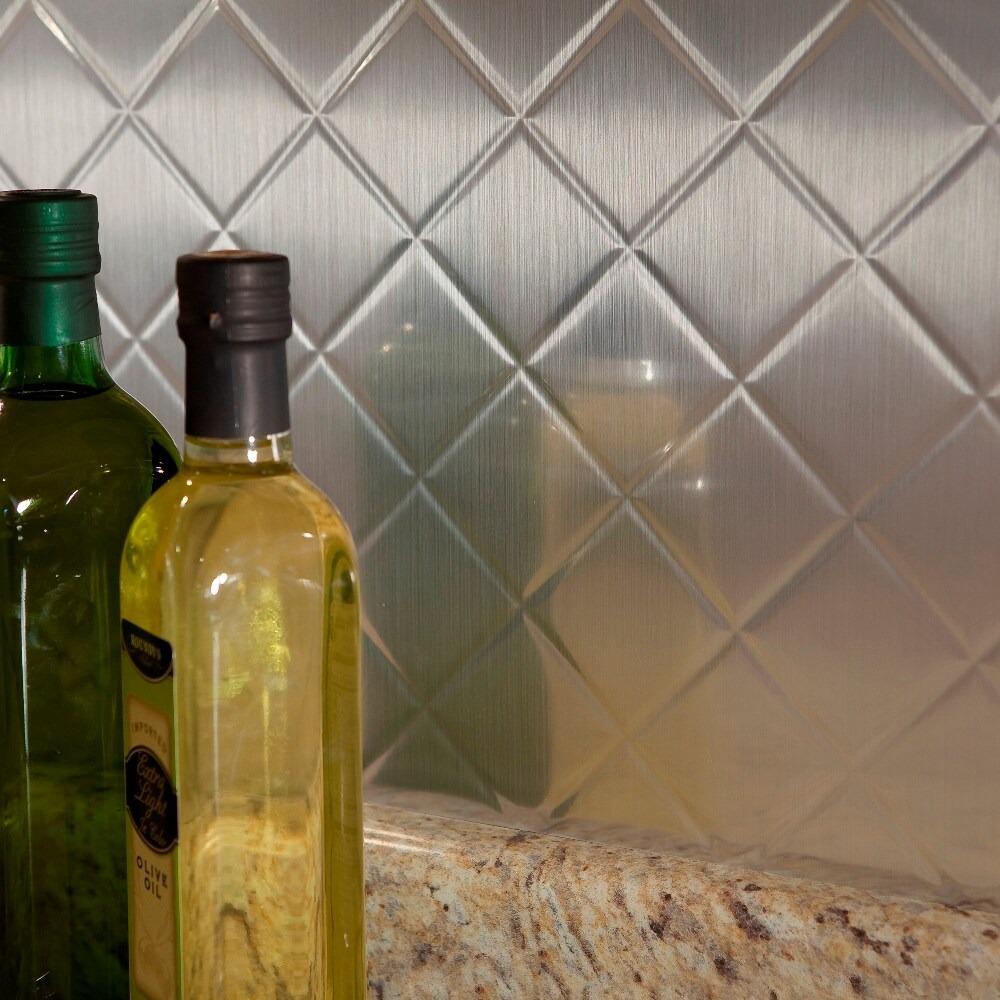

quilted-stainless-steel-backsplash-panels-kitchen-counter

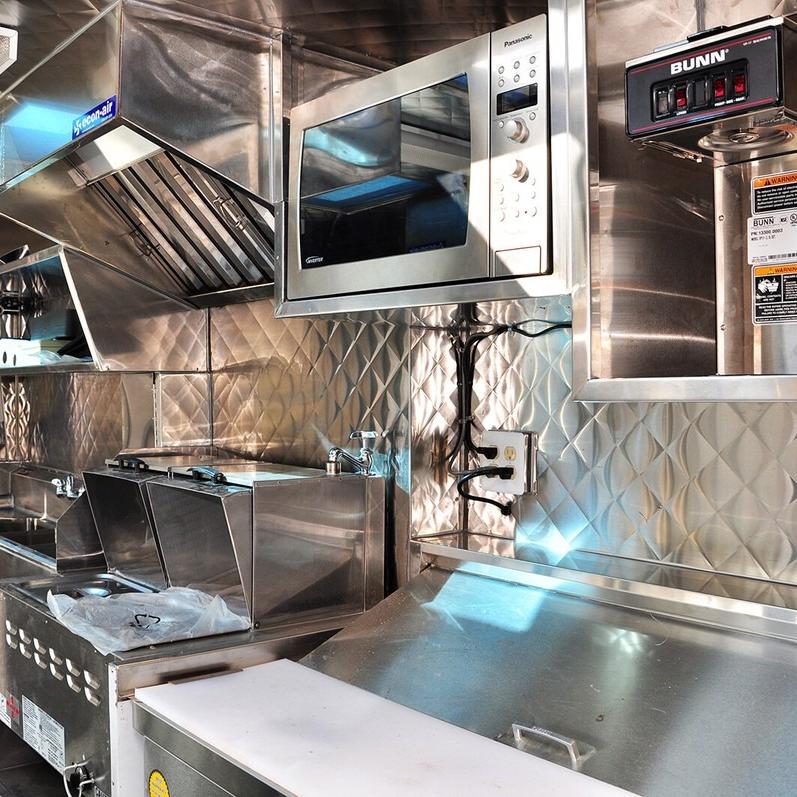

quilted-stainless-steel-wall-panel-food-truck-kitche
We supply fabricators, foodservice OEMs and contractors, by the sheet or by the full container.
Tell us about your project

Product Details

Design & Patterns
Sizes & Grades
sanmei metal decorative stainless steel sheets
Different patterns can match with different colors—click to see endless patterns and possibilities.
Explore ALL Catalog →

Standard Sizes & Thickness

Sheet Thickness
0.3mm – 3.0mm (30–11 Gauge)
Recommended Decorative Range
0.5mm – 2.0mm
Metric Sizes (Width x Length)
1000x2000, 1219x2438, 1219x3048, 1500x3000 mm
Imperial Sizes (Width x Length)
3.28x6.56, 4.00x8.00, 4.00x10.00, 4.92x9.84 ft
Coil Width Options
1000mm / 1219mm / 1500mm
Coil Weight Range
3–5 Tons (Custom Slitting Available)
Custom Sizing
Coil slitting & cut-to-length options available

Material & Processing Data

Substrate Options

AISI 201, 304, 304L, 316, 316L, 430

Surface Finish
Quilted Diamond Finish
Coloring Methods

PVD Coating / Water Plating

Standard Lead Time
7–10 Days (In Stock) / 25–30 Days (Custom)
Forward / Bulk Orders
30–45 Days
Request for Samples

Why project buyers work with Sanmei Metal

Material-driven, engineering-supported, execution-ready. One supplier from the mill to your site.
1

Source from leading partner mills

Base coil from Lisco, Tisco, Jisco, Posco PZSS, Yongjin and Hongwang, each batch with its Mill Test Report.
Our mill partners
2

Finish in-house

PVD, water plating and surface finishing under one roof at our Foshan facility.
Decorative finishes
3

Engineer and fabricate

Our engineers review drawings so profiles and panels can be made and installed.
Architectural metal works
4

Protect and ship

Film matched to laser cutting or stamping, and crates or steel frames packed for sea freight.
Packing and filming
Technical questions about grades, finishes or tolerances?
Technical guide

Our Leading Coating Technology.

Thicker coating, consistent color and easy-clean surfaces. Each one measured in our own production and compared with typical market product.
PVD coating

Thicker PVD coating

0.30µm
Typical coating thickness, up to 28% thicker than a typical market coil, so the color lasts longer.
See the coating test
Color control

Consistent color

ΔE ≤ 2
Every coil is held below the color difference the eye can see, so panels from different batches match.
See the color data
Anti-fingerprint

Fingerprint-resistant

215solvent rubs
Our anti-fingerprint coating withstood 215 rubs with a strong solvent. The standard requires 100. Typical market AF failed at 70.
See the AF test
Tested to GB/T and ISO standards, with MTR and SGS reports on request.
See all our quality control.

Documents you can check.

Every order ships with a Mill Test Report traced to its heat number, and SGS testing is available on request. These are real documents from our mill partners and our project work.
Certifications shown belong to Sanmei and its fabrication partners. Click a document to see it full size.
