7WL Embossed Stamped Stainless Steel | from Top Mills

7WL (also marketed as 7GM) stainless steel shares the same diamond (water-drop) shape as 6WL, but pressed far deeper — bold, raised rhombus pyramids in strong relief. It is the most three-dimensional pattern of the diamond family, with high slip resistance.

Finish:

2B/BA+ PVD

Materials:

201, 304/304L, 316/316L, 430 stainless steel

Color

Original, Gold, Rose Gold, Black, Bronze, Blue

Delivery Time:

Standard lead time: 7–15 days (depending on order volume)

MOQ:

As Your Need

Request for Samples

Product Specifications & Ordering Info

Overview

Sizes & Grades

Lead Time & Terms

Basic Info. of 7WL Stainless Steel Sheets

7WL stainless steel is an embossed / stamped diamond-pattern sheet, where precision rolling molds press large, high rhombus (pyramid) shapes into the surface at a deep profile. The deep emboss gives bold geometric diamonds with a wide pitch, a strong architectural look, real surface grip, and reduced glare, while still concealing fingerprints, fine scratches, and everyday wear. It suits elevator interiors, wall cladding, feature walls, commercial fixtures, and anti-slip panels on industrial equipment, platforms, and machine covers. The diamond scale can be customized.

Produced from coils supplied by well-known major mills in China, our 7wl textured stainless steel combines stable quality, consistent pattern definition, and reliable performance for both architectural and industrial projects.

Available Finishes & Colors

Finish: based on 2B / BA surface, combined with PVD coating to achieve multiple finishes with 7WL patterns.

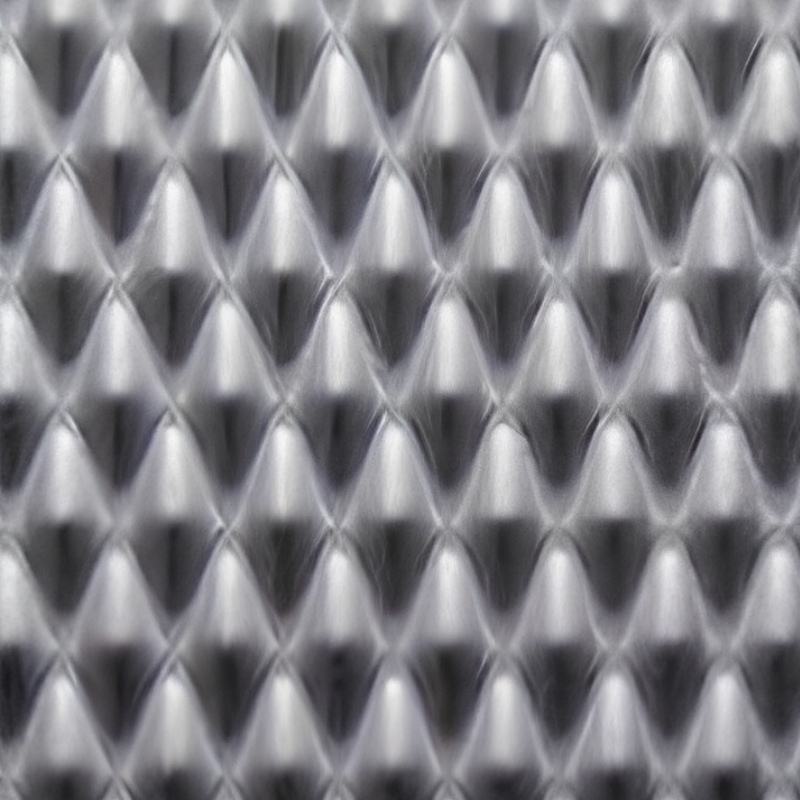

2B

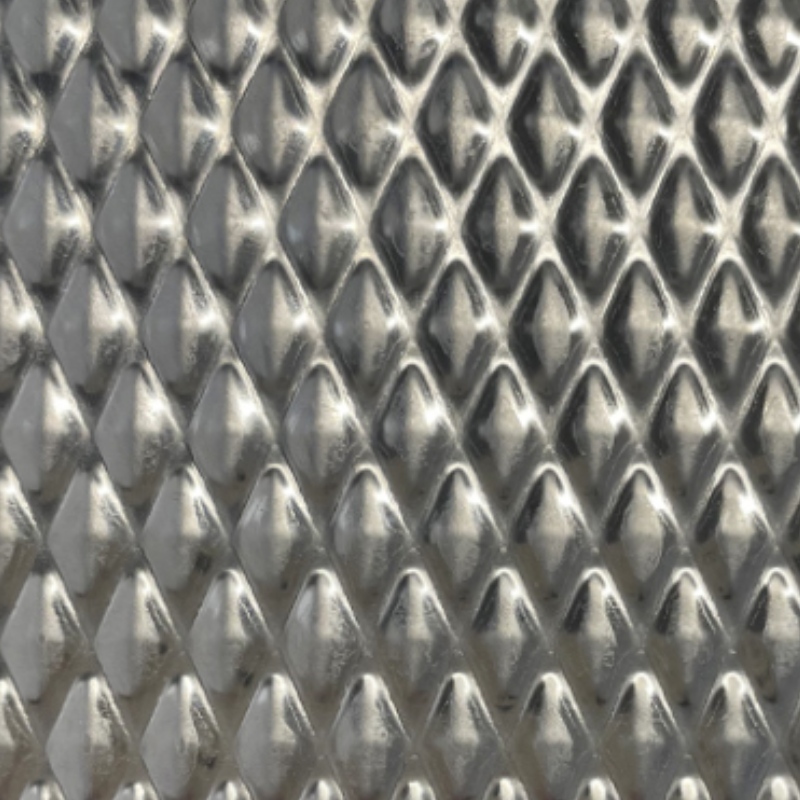

7WL BA textured Stainless Steel Sheet (2)

BA

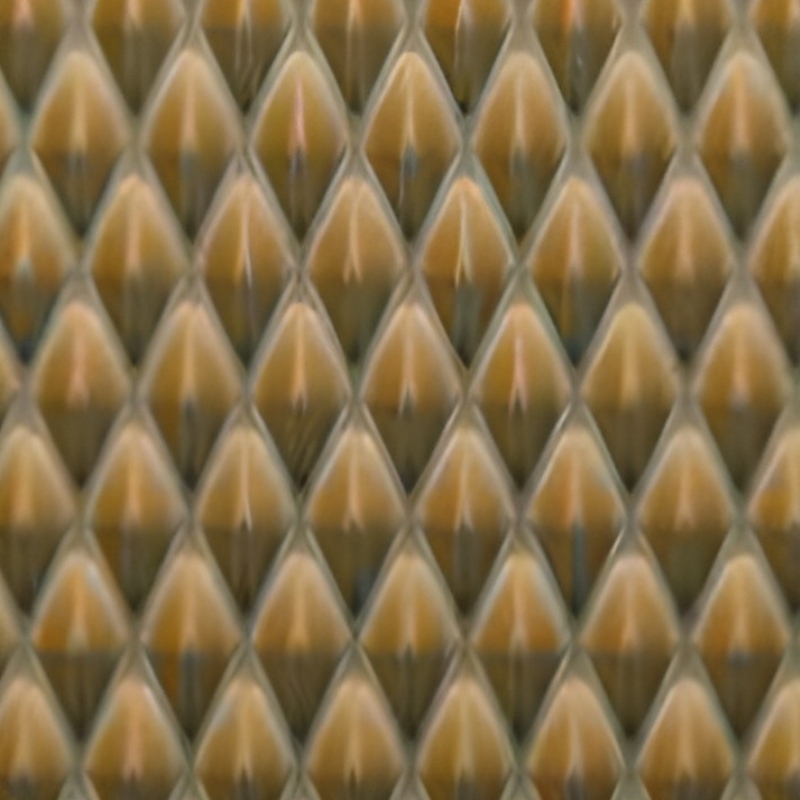

Gold

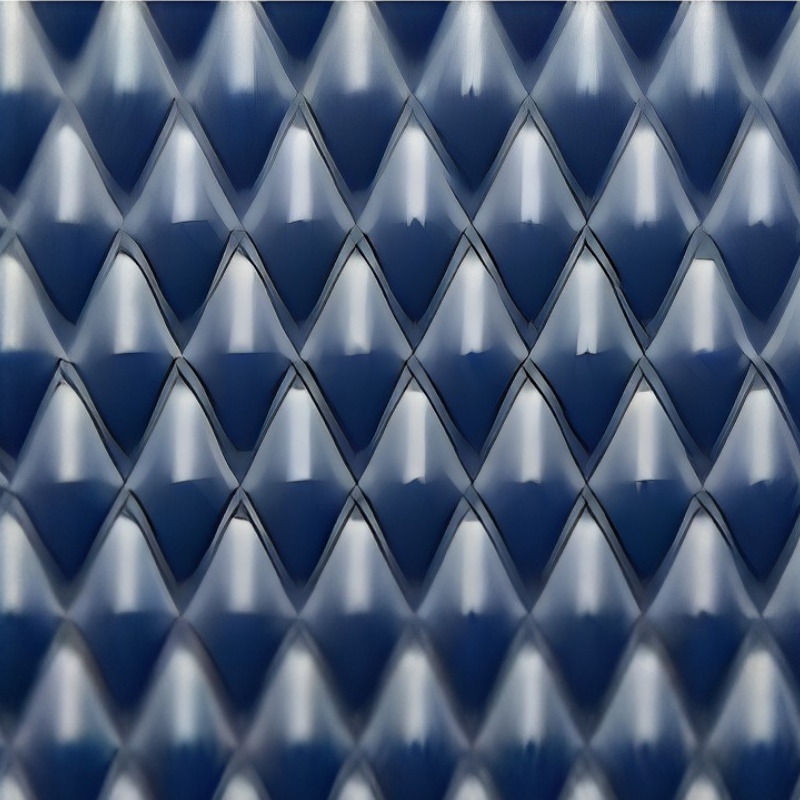

Navy blue

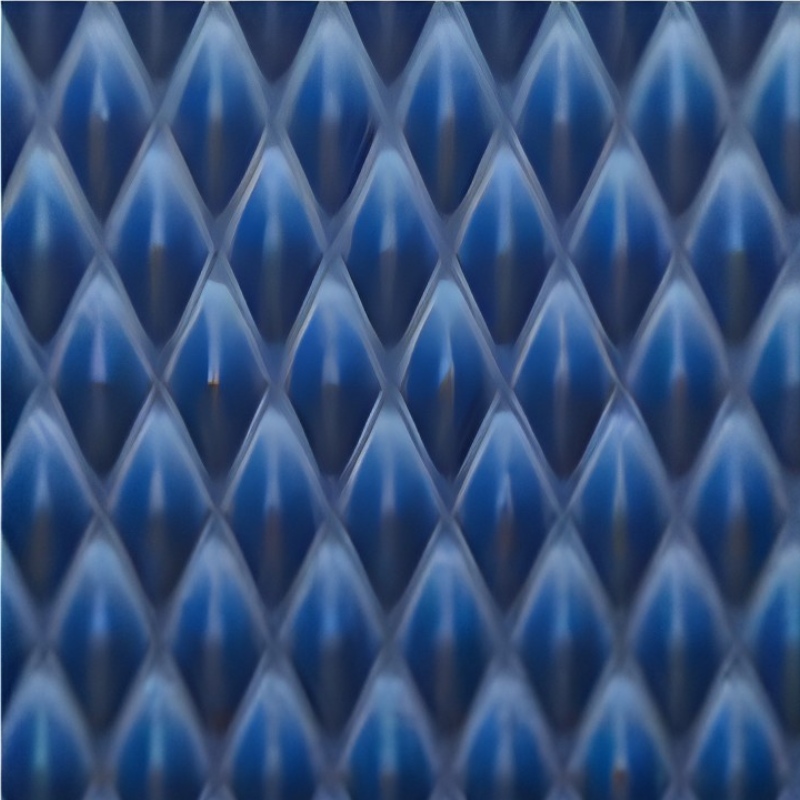

Sapphire Blue

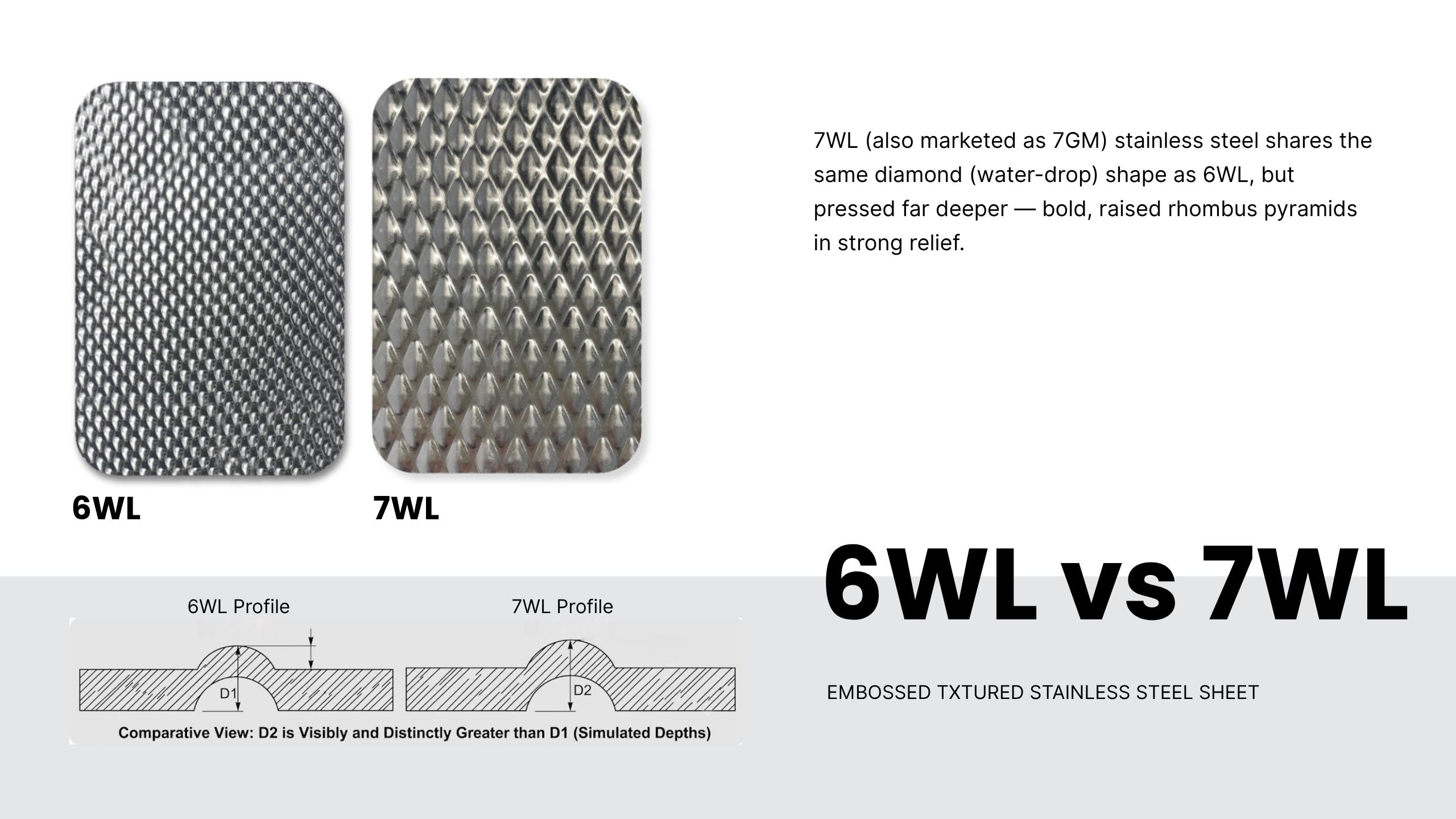

Comparison — 6WL and 7WL

Same diamond shape, much deeper press. 7WL stands out and grips; 6WL is the quiet, fine version.

	7WL (7GM)	6WL
Shape	Diamond / water-drop	Diamond / water-drop (same)
Embossing depth	Deep	Shallow
Pitch / scale	Large, bold diamonds	Small, dense mesh
Visual effect	Strong relief, most 3D of the family	Fine, even, refined grid
Best when you want	A bold architectural statement and grip	A subtle decorative mesh

Available Size and Grade for 7WL Embossed Stainless Steel Sheet

Metric

Imperial

Stainless Steel Sheet Specifications (mm)
Grade	Origin Mill	Width × Length (mm)	Thickness (mm)	Finishes	Mill Finish
201	Hongwang, Lisco	1000 × 2000 1219 × 2438 1219 × 3048 1500 × 3000	0.3–3.0	Embossed	2B
304L	Yongjin, Jisco, Posco PZSS, Tisco, Lisco
316	Posco PZSS, Tisco
316L	Posco PZSS, Tisco
304	Yongjin, Jisco, Posco PZSS, Tisco, Lisco	1000 × 2000 1219 × 2438 1219 × 3048 1250 × 2000 1250 × 2438 1250 × 3048 1250 × 3000
430	Jisco, Krupp

Stainless Steel Sheet Specifications (Imperial)
Grade	Origin Mill	Width × Length (ft)	Thickness (Gauge)	Finishes	Mill Finish
201	Hongwang, Lisco	3.28 × 6.56 4.00 × 8.00 4.00 × 10.00 4.92 × 9.84	Approx. 30–11 Ga	Embossed	2B
304L	Yongjin, Jisco, Posco PZSS, Tisco, Lisco
316	Posco PZSS, Tisco
316L	Posco PZSS, Tisco
304	Yongjin, Jisco, Posco PZSS, Tisco, Lisco	3.28 × 6.56 4.00 × 8.00 4.00 × 10.00 4.10 × 6.56 4.10 × 8.00 4.10 × 10.00 4.10 × 9.84
430	Jisco, Krupp

Guidance to Choose a Right Size for Your Embossed SS Sheets

Before purchasing, you should estimate the overall weight of the finished decorative sheet and the load-bearing capacity of the application area to avoid overloading.
Since decorative sheets are primarily used for aesthetic purposes, a smaller thickness is sufficient, which not only saves costs but also meets the requirements. Whether for indoor or outdoor use, the ideal thickness range for stainless steel decorative sheets is between 0.5mm and 2.0mm.

Sheets thinner than 0.5mm are too fragile and can be easily damaged during handling and manufacturing.
Sheets thicker than 2.0mm are difficult to process and challenging to use in practical applications.

Ordering Details

Stock: 7–10 days
Forward Order: 30–45 days
Custom orders: 25–30 days
Payment: By negotiation (commonly CAD, DP, DA, LC)

Sanmei Metal Embossed and HammeredStainless Steel Sheet Catalog

Discover more embossed stainless patterns and color options

From simple linear textures to natural wood and watergrain designs, available in red, blue, yellow, white, orange, purple and more.*

Browse Patterns & Colors

FAQ — 7WL / 7GM

Are 7WL and 7GM the same thing?

In our range, yes — 7WL and 7GM refer to the same deep diamond pattern. Note that some suppliers use these codes differently, so always confirm against the actual sample image.

What's the difference between 7WL and 6WL?

Same diamond/water-drop shape. 7WL is deep, large, and bold (most 3D of the family); 6WL is shallow, small, and dense.

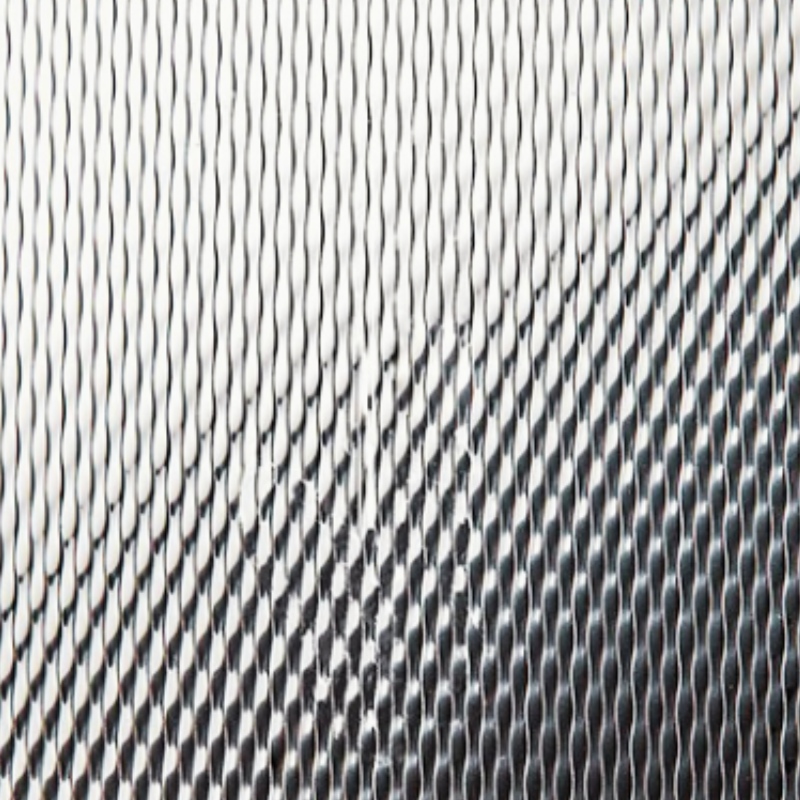

How is 7WL different from 2WL, 5WL, 7DL, and 15DP?

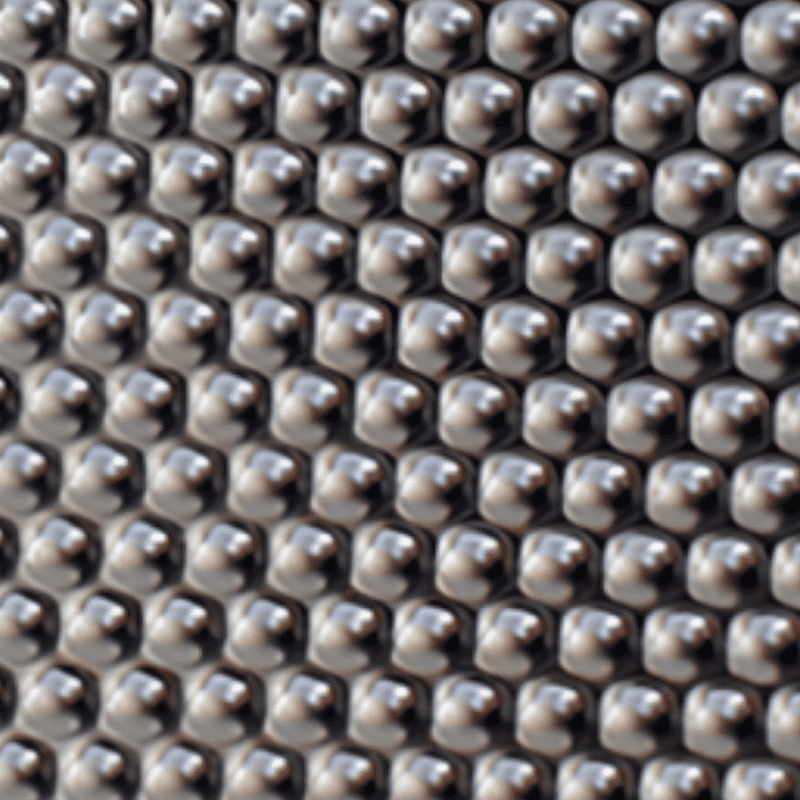

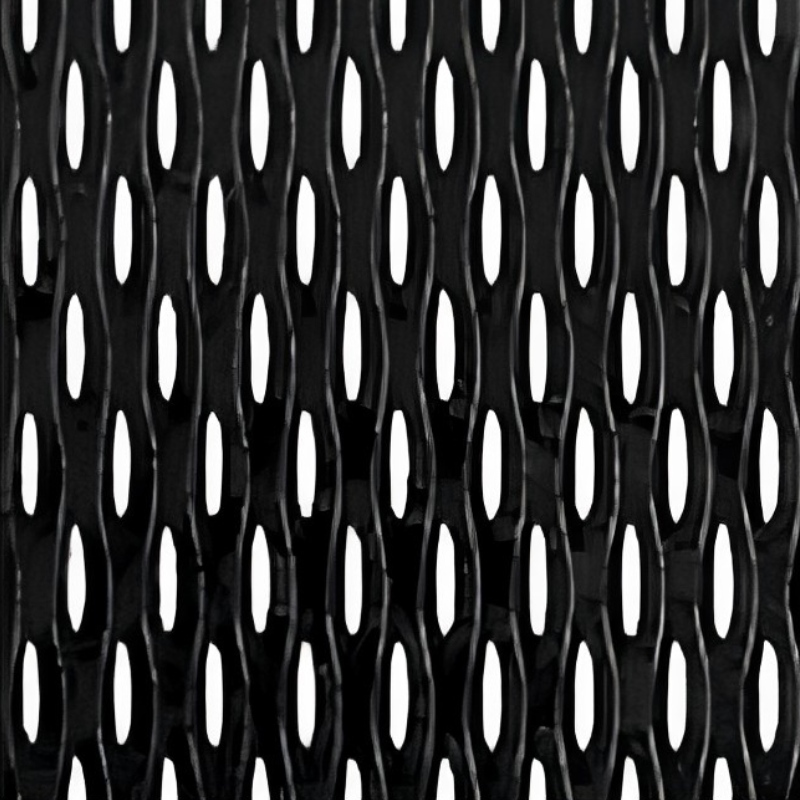

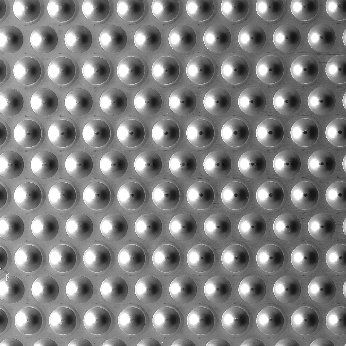

By shape. 7WL (with 6WL) is a diamond / water-drop mesh pattern. 2WL and 5WL are ripple / wave patterns. 7DL and 15DP are round-dome (dot) patterns (both round; they differ by dome size, density, and depth).
